Surly

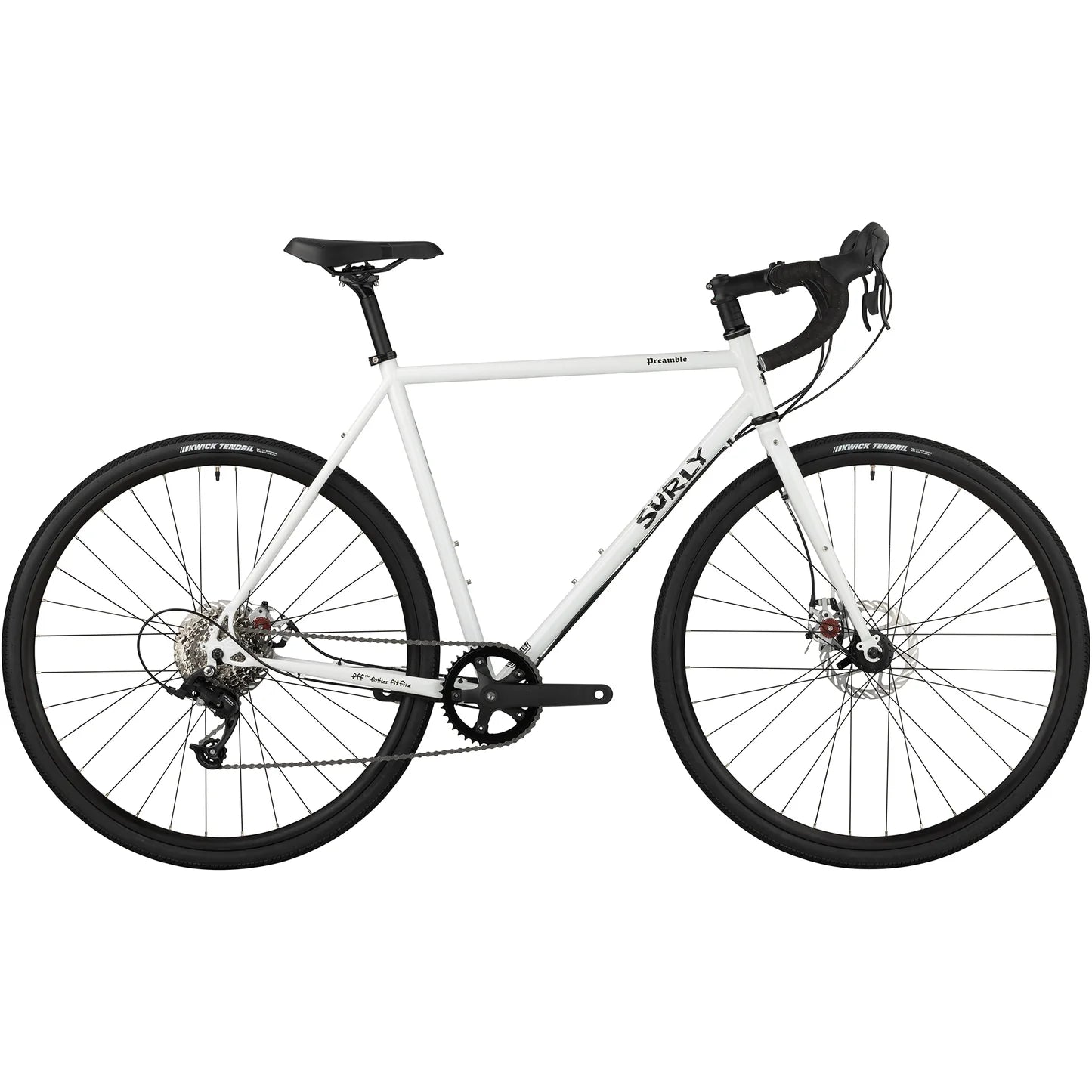

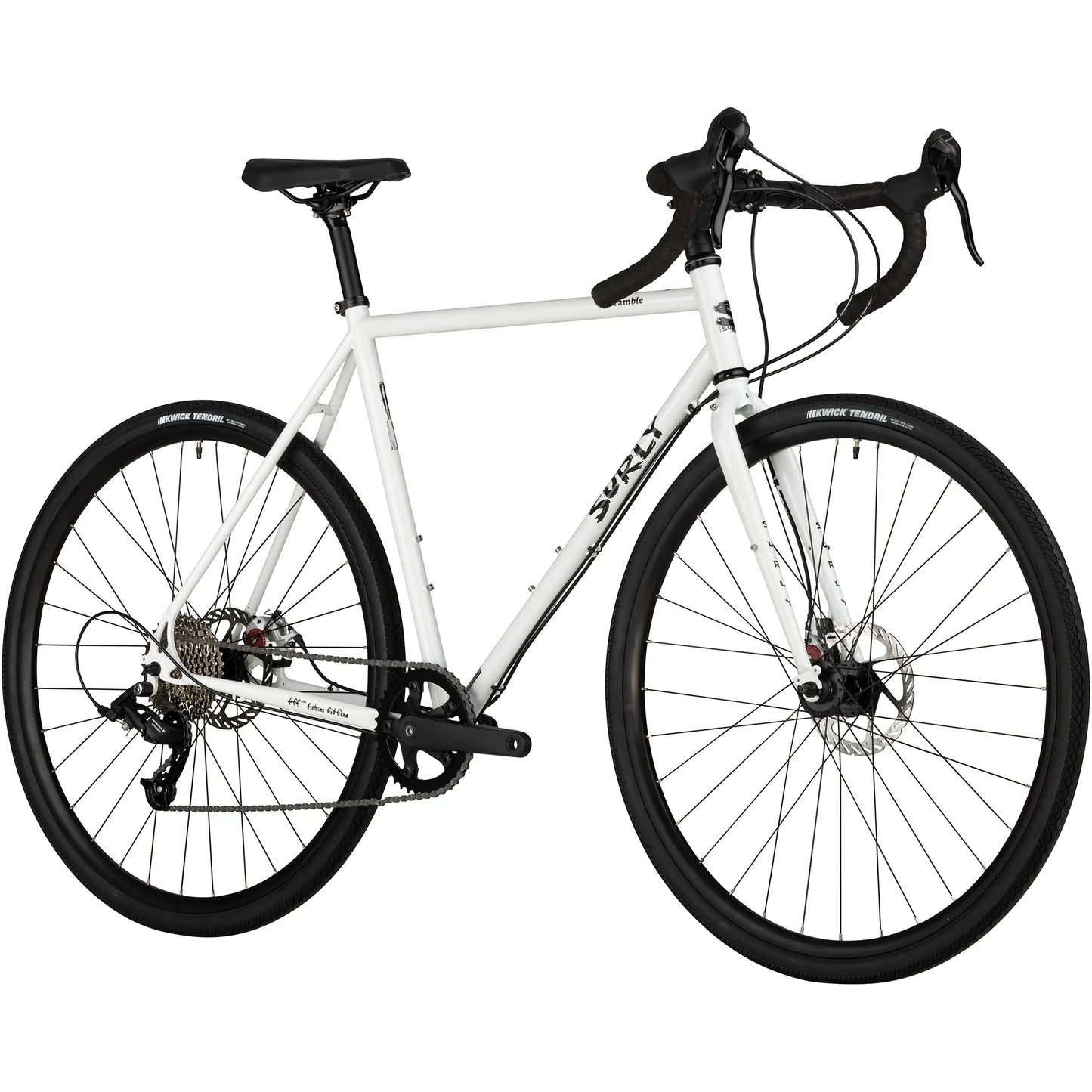

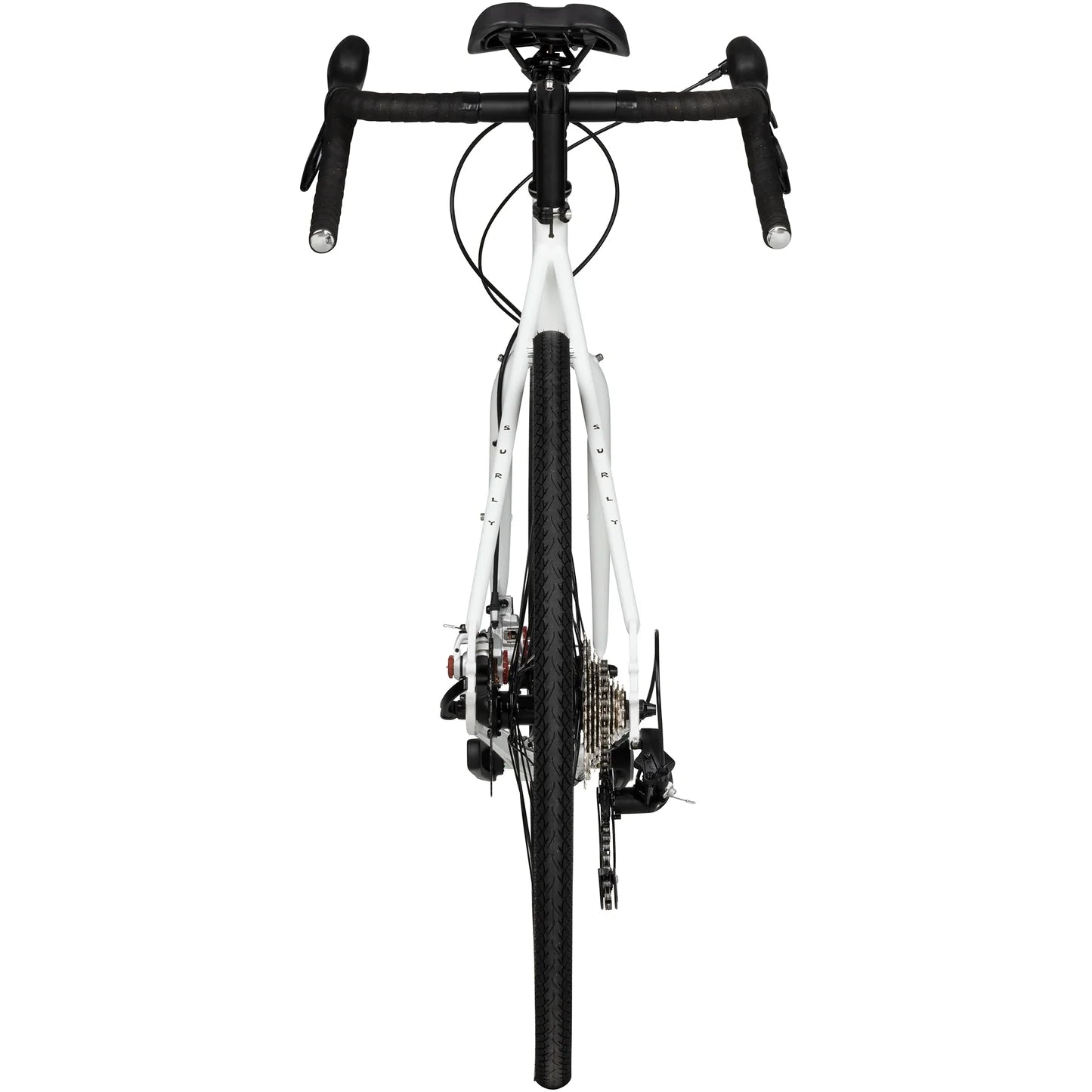

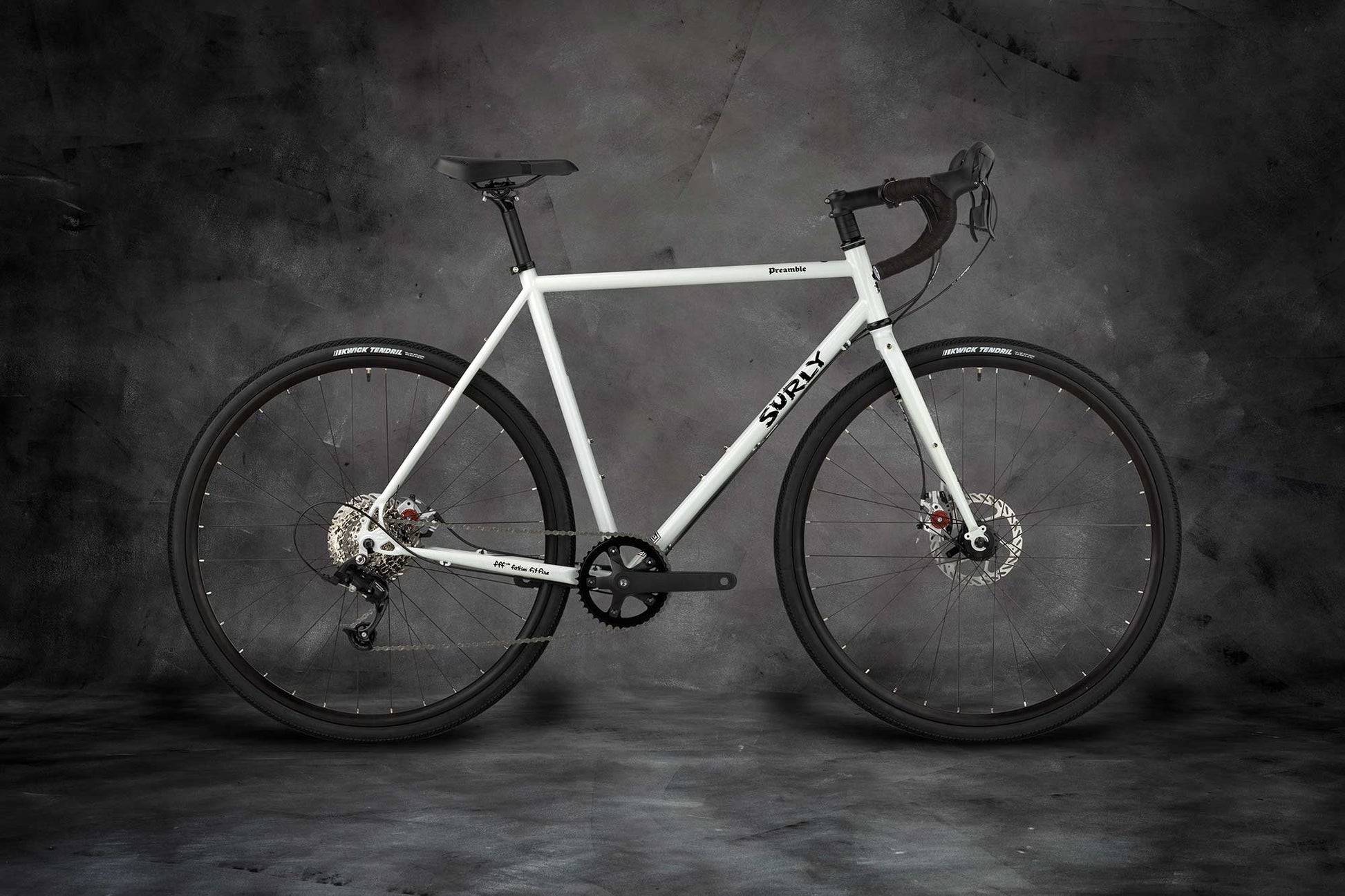

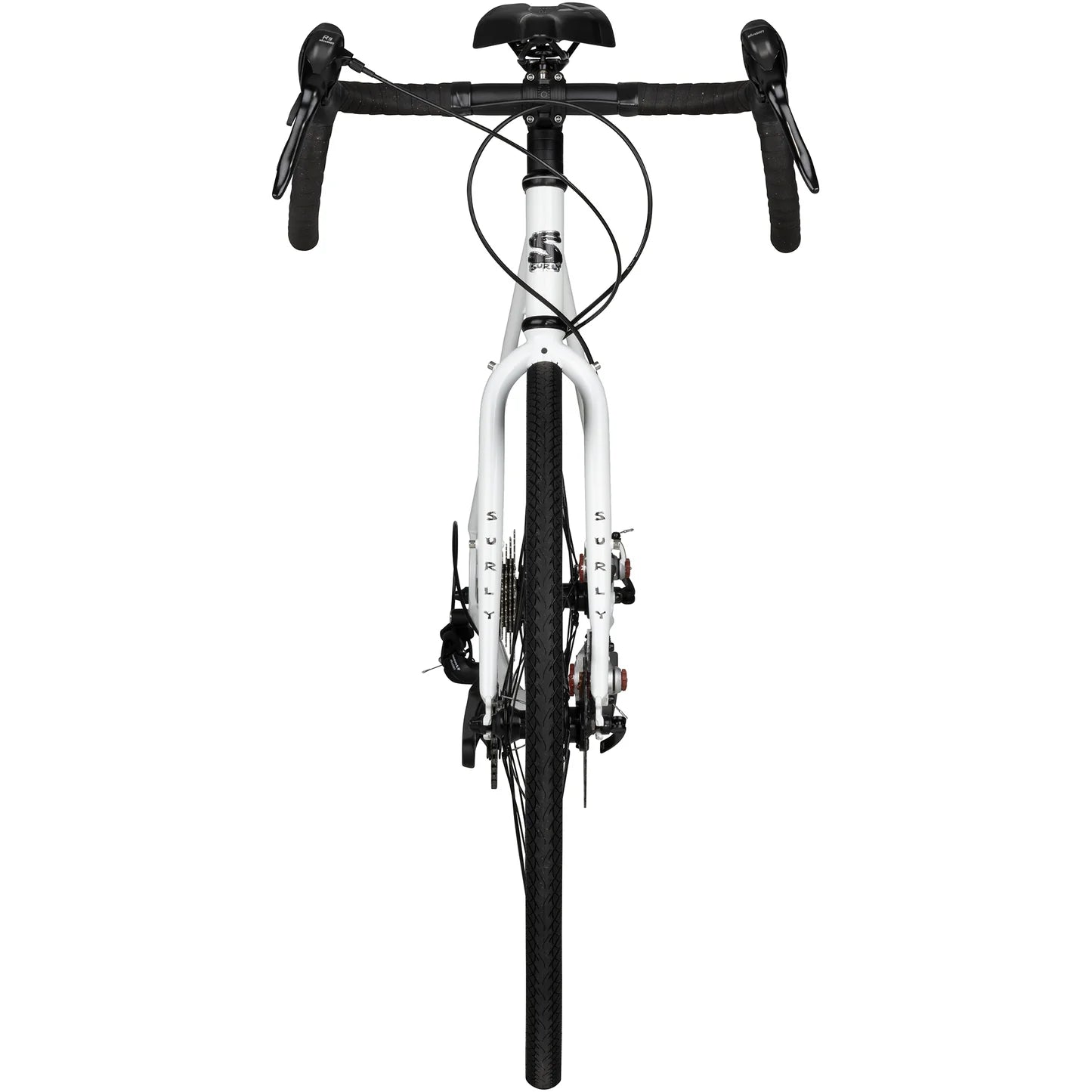

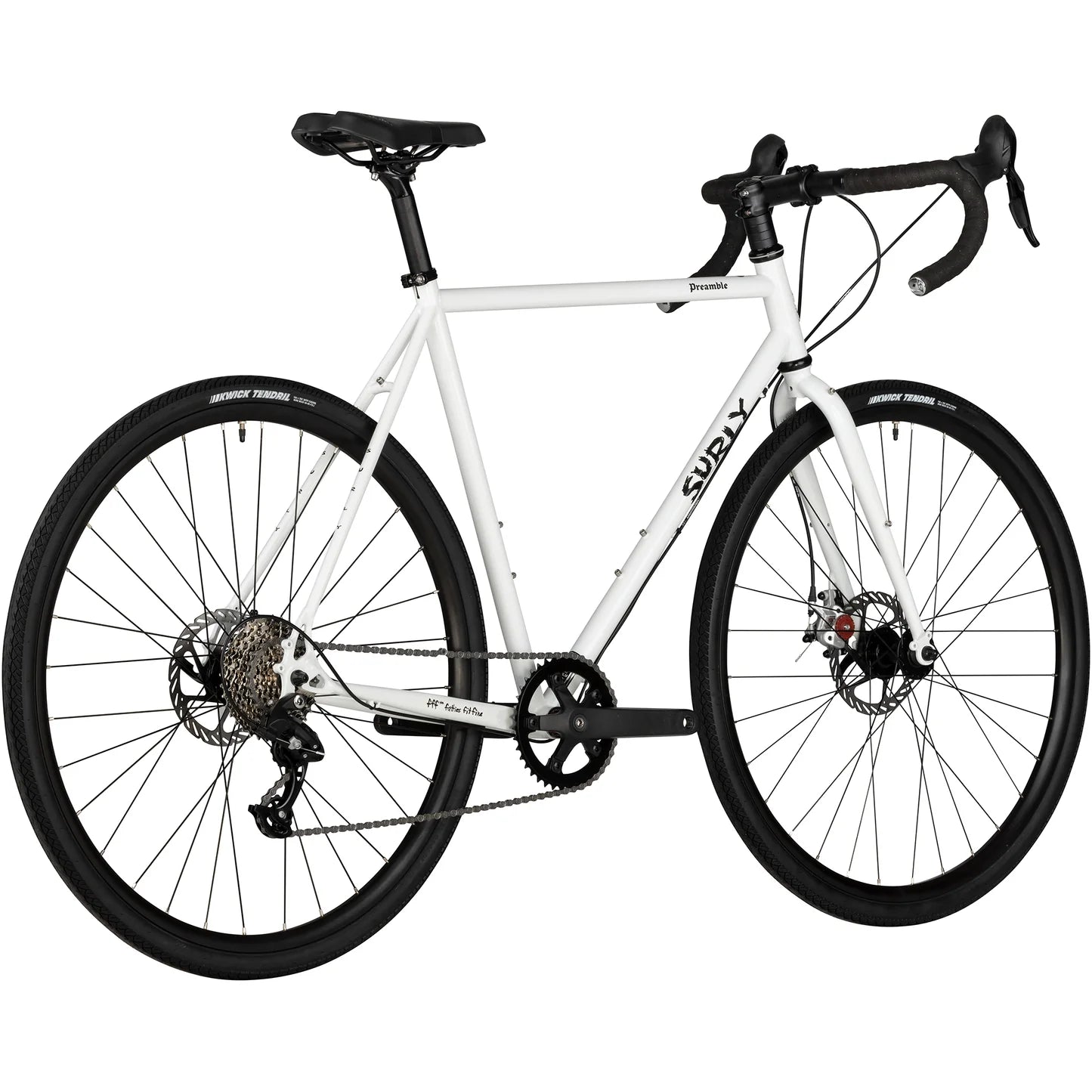

SURLY Preamble - Thorfrost White
SURLY Preamble - Thorfrost White
Couldn't load pickup availability
Nothing More is Needed. Nothing Less Will Do.
The challenge was thus: Build a serious steel bike and give it only the attributes that matter most. Make it quick and comfortable on pavement, as well as confident and compliant on degraded surfaces. What the Enginerds put forth is Preamble, a pavement and gravel utility worker that proves you don’t need to cut corners or clip coupons to make a more affordable steel bike. You just need to keep shit simple.
Preamble can run racks and fenders and carry a couple water bottles. Surly was raised on stealing basic cable, after all. Smooth and efficient on asphalt, Preamble’s double-butted main triangle provides a resplendent ride feel and withstands abuse from life’s inevitable potholes. Make it your own with flat bars, drop bars, a basket, or bags. On the road to steel euphoria, Preamble is the gateway drug.
- Let facts be submitted to a candid world: Offered in flat-bar and drop-bar configurations
- Easy T-Shirt sizing to fit nearly every rider (XS,S,M,L,XL)
- Sloping top tubes on XS and Small frames for improved standover and comfort
- To offer the best rider experience for every frame size, XS and S frames get 650b wheelsets while M–XL get 700c
- Custom-cast single-position vertical dropout
GEOMETRY
Size | X-Small | Small | Medium | Large | X-Large |
---|---|---|---|---|---|
A. Effective Top Tube | 500.0 | 545.0 | 570.0 | 600.0 | 630.0 |
B. Stand Over | 722.0 | 776.0 | 826.0 | 863.0 | 901.0 |
C. Reach | 352.0 | 381.0 | 391.0 | 404.0 | 421.0 |
D. Stack | 517.0 | 535.0 | 567.0 | 605.0 | 643.0 |
E. Total Seat Tube Length | 410.0 | 505.0 | 565.0 | 605.0 | 645.0 |
F. Headtube Length | 120.0 | 135.0 | 130.0 | 170.0 | 210.0 |
G. Headtube Angle |
70.0
|
71.0
|
72.0
|
72.0
|
72.0
|
H. Seat Tube Angle |
74.0
|
73.0
|
72.5
|
72.0
|
72.0
|
I. BB Drop | 54.0 | 54.0 | 66.0 | 66.0 | 66.0 |
K. Chainstay Length | 420.0 | 420.0 | 435.0 | 435.0 | 435.0 |
L. Fork Length Axle to Crown | 380.0 | 380.0 | 400.0 | 400.0 | 400.0 |
M. Fork Offset | 47.0 | 47.0 | 44.0 | 44.0 | 44.0 |
N. Wheelbase | 987.0 | 1013.0 | 1030.0 | 1055.0 | 1085.0 |
Crank Arm Length | 165.0 | 170.0 | 170.0 | 175.0 | 175.0 |
Handlebar Width | 380.0 | 400.0 | 420.0 | 440.0 | 460.0 |
Recommended Rider Height | 152.4 - 165.1 | 162.56 - 172.72 | 170.18 - 182.88 | 180.34 - 190.5 | 187.96 - 200.66 |
Stem Length | 80.0 | 80.0 | 90.0 | 100.0 | 100.0 |
Technical Specifications
Technical Specifications
Frameset
Frame
Surly Preamble, 100% Chromoly steel tubing, E.D. coated
Color
Thorfrost White
Fork
Surly Preamble, 100% Chromoly steel fork, Disc Only
Components
Headset
VP 1-1/8" Threadless
Seatpost Clamp
Surly Stainless 30.0
Seatpost
Kalloy 27.2 x 300mm
Stem
Kalloy 31.8
Grips/Bar Tape
Black Cork
Saddle
Selle Italia X Base
Handlebar
Salsa Cowbell
Drivetrain
Front Derailleur
N/A
Rear Derailleur
microSHIFT RD-M46S
Cassette
microSHIFT 11-36t, 9-speed
Chain
KMC Z9
Crankset
Samox, 3-piece, 40t
Shifter
microSHIFT R400
Brake Levers
microSHIFT R400-L and R-490-R
Brake Calipers
Avid BB7 Mechanical
Bottom Bracket
Samox
Rotors
SRAM 160mm, front and rear
Wheels
Front Tire
Kenda Kwik Tendril 700c x 35mm (MD/LG/XL sizes) & Kenda Standard 650b x 1.35 (XS/SM sizes)
Rear Tire
Kenda Kwik Tendril 700c x 35mm (MD/LG/XL sizes) & Kenda Standard 650b x 1.35 (XS/SM sizes)
Front Hub
Novatec, 6-bolt disc, 32h, QR
Rear Hub
Novatec, 6-bolt disc, 32h, QR
Rim
21mm, 32h
*Specifications are subject to change without notice
Frame Specs
- Design Wheel/Tire Sizes650b x 41mm: XS-SM frames
700c x 41mm: MD-XL frames - Frame Construction100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
- Fork Construction4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
- Rigid Fork Length380mm: XS-SM
400mm: MD-XL - Fork Offset47mm: XS-SM
44mm: MD-XL - Rear Spacing"Gnot-Boost" 138mm
- Rear Axle Size10 x 135mm or 10 x 141mm
- Front Brake (Rotor)Disc - 51mm I.S. (203mm max rotor)
- Headset - UpperEC34/28.6
- Headset - LowerEC34/30
- Front Spacing10 x 100mm
- Steerer TubeØ28.6mm
- Crown Race30mm (1-1/8")
- SeatpostØ27.2mm
- Dropper Post CompatibleNo
- Seatpost ClampØ30.0mm
- Front Derailleur ClampHigh direct mount top-pull (Ø28.6mm)
26mm offset adapter (included) for 135mm rear hub spacing
29mm offset adapter (not included) for 141mm rear hub spacing - Bottom Bracket68mm BSA, threaded
- Crankset (Max Ring)1x (47CL): 42T
2x (47CL): 46/36T - Bottle Mounts2 Standard
- Fork MountsFork crown and mid-blade rack mounts
- Front Fender MountsYes
- Rear Fender MountsYes
