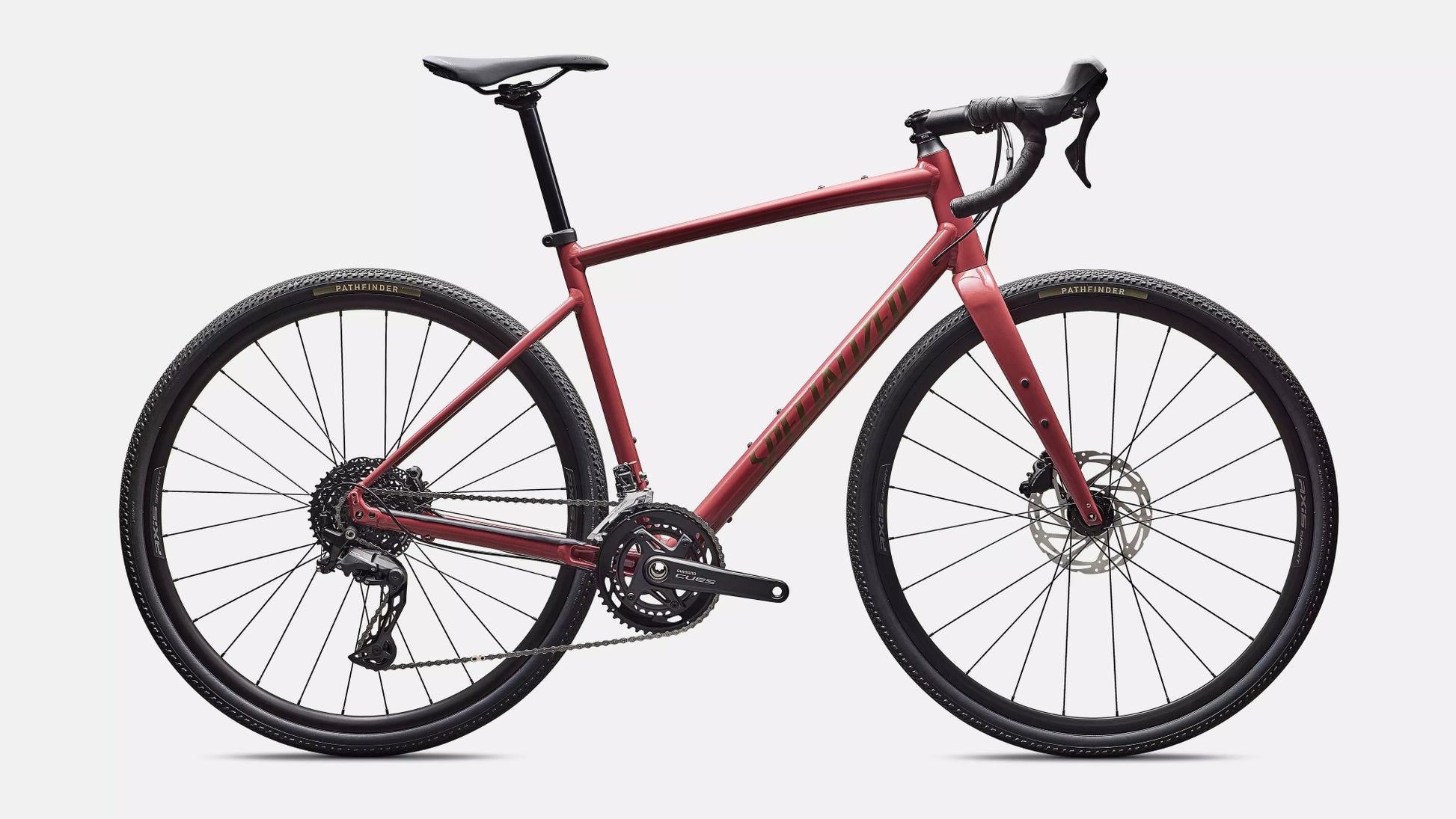

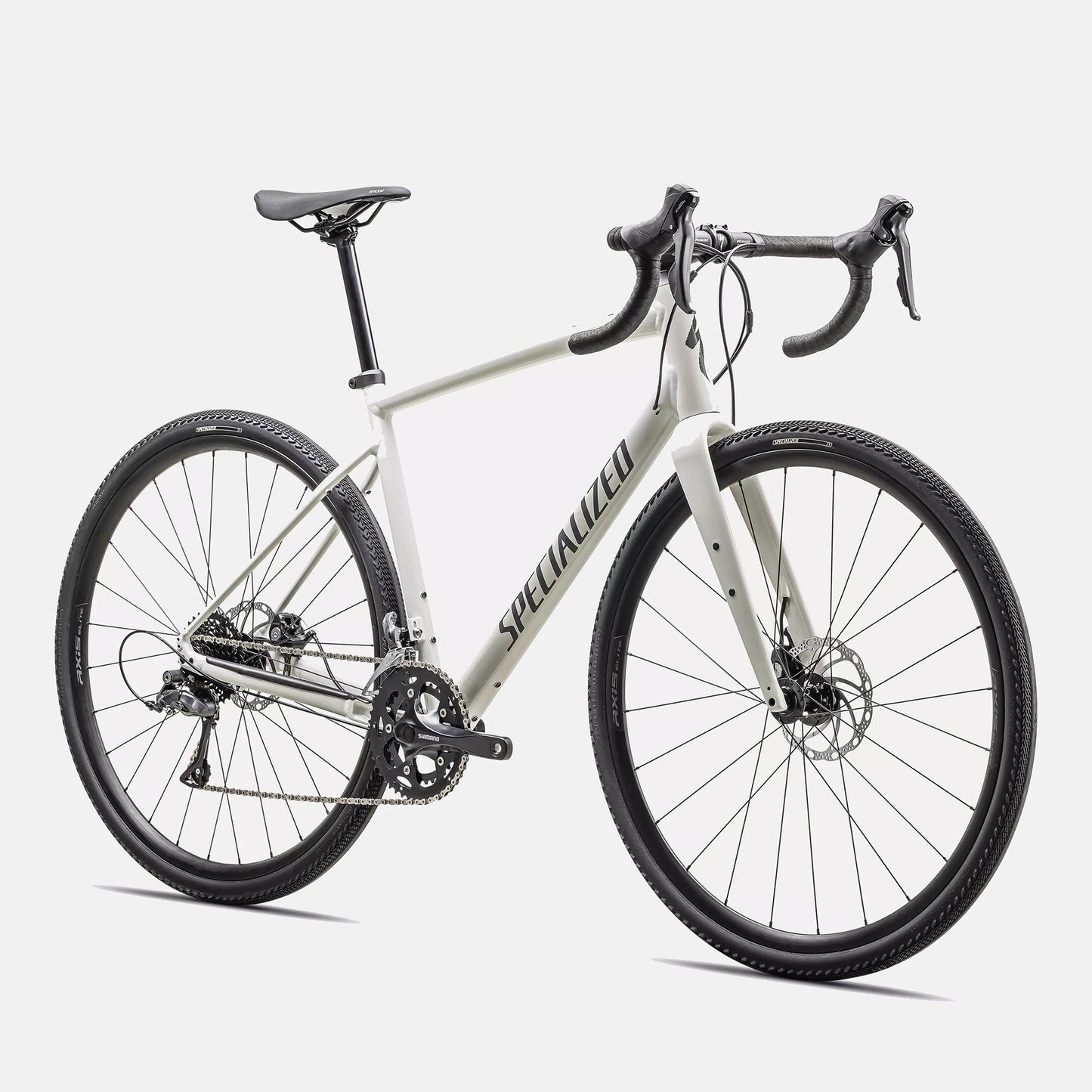

Specialized Diverge E5 – Shimano CUES 2x10 Alloy Gravel Bike
Specialized Diverge E5 – Shimano CUES 2x10 Alloy Gravel Bike
The Ultimate Getaway Vehicle.
Whether you're escaping down gravel backroads, lining up for your first gravel race, or building the most versatile drop-bar bike in your garage, the Specialized Diverge E5 is built to do it all.
This is not just an entry-level gravel bike. With Shimano CUES 2x10, a full carbon fork, and class-leading tire clearance, the Diverge E5 delivers real performance on pavement, hardpack, and rough country roads.
Fast when you want it. Stable when you need it.
Built on Premium E5 Alloy
The Diverge E5 uses Specialized’s Premium E5 aluminum frame paired with a full carbon FACT fork. The result is a lightweight, stiff, and responsive platform that smooths out chatter while staying efficient under power.
- Threaded BSA bottom bracket (easy serviceability)
- Internal cable routing
- 12x142mm rear thru-axle
- Flat-mount disc brakes
This is a durable, long-haul frame you can grow with.
Shimano CUES 2x10 Drivetrain
This build features Shimano CUES 2x10 — a major step up in durability and range.
- Shimano CUES FC-U6030 crankset (46/32T)
- Shimano CUES 11–39T 10-speed cassette
- Shimano CUES front and rear derailleurs
- Shimano CUES ST-U6030 shifters
The wide gear range handles steep climbs, long gravel grinds, and fast road sections with ease. CUES is designed for longevity and smooth shifting under load — perfect for mixed terrain riding.
Progressive Gravel Geometry
Specialized rethought gravel geometry from the ground up.
- Longer reach for stability
- Slacker head tube angle for confidence in the dirt
- Longer fork offset for planted handling
- Low bottom bracket for stability
- Compatible with 650b if you want to go wider
The bike feels planted and controlled off-road, yet responsive and lively on pavement.
Massive Tire Clearance
Nothing unlocks capability like tire clearance.
- 700c: up to 47mm
- 650b: up to 2.1”
Stocked with Pathfinder 700x40c tires — fast rolling on pavement, confident on hardpack.
Adventure Ready Mounting
The Diverge E5 includes:
- Fork mounts
- Top tube mounts
- Rack compatibility
Load it for commuting. Set it up for bikepacking. Or keep it stripped down and fast.
Wheelset & Finishing Kit
- AXIS Sport Disc wheels
- Pathfinder 700x40c tires
- Specialized shallow drop bars
- Body Geometry Bridge saddle
- Supacaz Suave bar tape
Weight
10.48 kg (23 lb 1.7 oz) – Size 56
Couldn't load pickup availability
Key Features
Key Features
Premium E5 Aluminum Frame
Lightweight, stiff, and durable platform built for mixed-surface riding.
FACT Carbon Fork
Reduces weight and smooths out vibration for improved comfort and control.
Shimano CUES 2x10 drivetrain with wide 46/32T and 11–39T range.
47mm Tire Clearance (700c)
Or up to 2.1” with 650b wheels—room to upgrade and grow.
Mounts for Everything
Rack mounts (including fork and top tube) for commuting or bikepacking.
Axis Elite Wheels + Pathfinder Sport 38mm Tires
Efficient on pavement. Confident on dirt.
Sizing
Sizing
The Diverge E5 is available in seven frame sizes. Use the chart below as a starting point. Rider proportions vary, so reach out if you’d like help dialing in the perfect fit.
44cm
Best for riders 4’8” – 5’1”
49cm
Best for riders 5’0” – 5’4”
52cm
Best for riders 5’3” – 5’7”
54cm
Best for riders 5’6” – 5’10”
56cm
Best for riders 5’9” – 6’0”
58cm
Best for riders 5’11” – 6’2”
61cm
Best for riders 6’2” – 6’6”
Between sizes?
If you prefer a more upright, stable feel, size up. If you want a slightly racier, more responsive fit, size down.
We’re always happy to help with fit recommendations—especially if you’re planning longer gravel rides or loading the bike for bikepacking.
Technical Specifications
Technical Specifications
Frameset
Frame: Specialized Diverge E5 Premium Aluminum, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Fork: FACT carbon, full carbon steerer, 12x100mm thru-axle, flat-mount disc
Seat Binder: Alloy, 30.8mm
Brakes
Front Brake: Tektro Mira, flat-mount mechanical disc
Rear Brake: Tektro Mira, flat-mount mechanical disc
Drivetrain
Shifters: Shimano CUES ST-U6030
Front Derailleur: Shimano CUES FD-U6030 (braze-on)
Rear Derailleur: Shimano CUES RD-U6020, 10-speed
Crankset: Shimano CUES FC-U6030, 46/32T
Cassette: Shimano CUES CS-LG300-10, 11–39T
Chain: KMC XGlide
Bottom Bracket: Shimano Threaded BSA
Wheels & Tires
Front Wheel: AXIS Elite Disc
Rear Wheel: AXIS Elite Disc
Front Tire: Specialized Pathfinder Sport, 700x38c
Rear Tire: Specialized Pathfinder Sport, 700x38c
Inner Tubes: 700x28/38mm, 48mm Presta valve
Cockpit
Stem: 3D-forged alloy, 31.8mm, 7° rise
Handlebars: Specialized Shallow Drop, 6061 alloy, 70x125mm, 31.8mm clamp
Tape: Supacaz Suave
Saddle: Body Geometry Bridge Saddle, steel rails
Seatpost: Alloy, 2-bolt clamp, 27.2mm, 12mm offset, anti-corrosion hardware
Product Details
Product ID: 223493
Weight: 10.24kg (22 lb, 9.2 oz) – Size 56
*Weights based on production painted frames as pictured. Actual weights may vary by color, size, and component variation. Specifications subject to change without notice.
FAQ
FAQ
Is this bike good for beginners?
Yes. The Diverge E5 is stable, predictable, and versatile—perfect for riders new to gravel or road cycling.
Can I commute on it?
Absolutely. With rack mounts and durable construction, it’s ideal for commuting and light touring.
Can I upgrade it later?
Yes. The frame supports larger tires and component upgrades as your riding evolves.
Does it come tubeless ready?
It comes with tubeless-compatible rims and tires, but tubeless setup requires valves and sealant (sold separately).
Is this bike eligible for professional assembly?
Yes. We professionally assemble and safety-check every bike before pickup.
