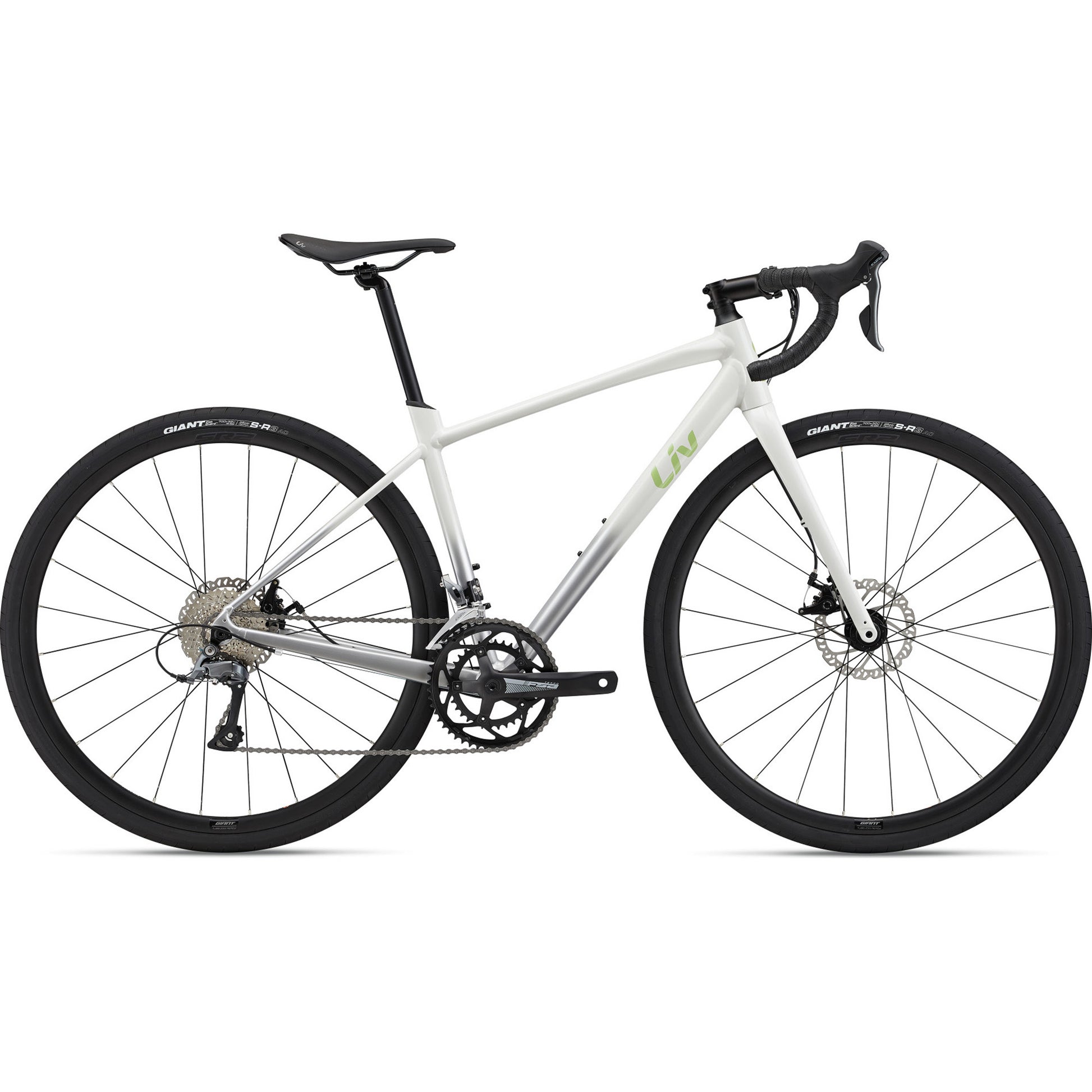

Liv Avail AR 4 - Snow Drift
Liv Avail AR 4 - Snow Drift
Couldn't load pickup availability
WHETHER IT’S NAVIGATING ASPHALT OR VENTURING THROUGH AN UNPAVED SHORT CUT, THE AVAIL AR IS SMOOTH ON FLATS, SPRY ON CLIMBS AND CONFIDENT ON DESCENTS.
KEY PERFORMANCE FACTORS
Comfort
The lightweight ALUXX frame features the latest women’s endurance geometry with an Advanced-Grade Composite fork and D-Fuse seatpost to diminish vibrations.
Control
The Avail AR comes with 32c tires that ride steady on-road and off, and is compatible with tires up to 38c (select models are tubeless). Maintain precise handling with the OverDrive steerer and powerful disc brakes.
Carrying capacity
This bike also accommodates a rack and fenders to keep you equipped on longer hauls.
GEOMETRY
XS | S | M | L | ||
---|---|---|---|---|---|
A | SEAT TUBE LENGTH (inch) | 16.1 | 17.5 | 18.9 | 20.3 |
B | SEAT TUBE ANGLE | 74.5° | 74.5° | 74.0° | 74.0° |
C | TOP TUBE LENGTH (inch) | 20.3 | 20.7 | 21.3 | 21.9 |
D | HEAD TUBE LENGTH (inch) | 4.6 | 5.4 | 6.2 | 7 |
E | HEAD TUBE ANGLE | 70.5° | 71.5° | 72.0° | 72.0° |
F | FORK RAKE (inch) | 2.1 | 2.1 | 2.1 | 2.1 |
G | TRAIL (inch) | 2.7 | 2.4 | 2.3 | 2.3 |
H | WHEELBASE (inch) | 39.3 | 39.4 | 39.6 | 40.2 |
I | CHAIN STAY LENGTH (inch) | 16.6 | 16.6 | 16.6 | 16.6 |
J | BOTTOM BRACKET DROP (inch) | 3.1 | 3.1 | 3.1 | 3.1 |
K | STACK (inch) | 21.2 | 22.1 | 22.9 | 23.7 |
L | REACH (inch) | 14.4 | 14.5 | 14.7 | 15.1 |
M | STAND OVER HEIGHT (inch) | 26.8 | 27.9 | 29 | 30.2 |
N | HANDLEBAR WIDTH (inch) | 15 | 15.7 | 15.7 | 16.5 |
O | STEM LENGTH (inch) | 2.8 | 3.1 | 3.5 | 3.5 |
P | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.8 |
Q | WHEEL SIZE | 700C | 700C | 700C | 700C |
Technical Specifications
Technical Specifications
Colors: Snow Drift/Silver
Frame: ALUXX-Grade Aluminum, 12x142mm thru-axle, disc
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm, disc
Shock: N/A
Handlebar: Liv Connect, 31.8mm XXS:38cm, XS:38cm, S:40cm, M:40cm, L:42cm
Grips: Liv All Condition
Stem: Giant Sport XXS:70mm, XS:70mm, S:80mm, M:90mm, L:90mm
Seatpost: Giant D-Fuse, alloy XXS:350mm, XS:350mm, S:350mm, M:350mm, L:350mm
Saddle: Liv Approach
Pedals: N/A
Shifters: Shimano Claris
Front Derailleur: Shimano Claris
Rear Derailleur: Shimano Claris
Brakes: Tektro MD-C550 mechanical, Shimano rotors [F]160mm, [R]160mm
Brake Levers: Shimano Claris
Cassette: Shimano CS-HG50, 8-speed, 11x34
Chain: KMC Z83
CranksetFSA Tempo, 34/50 XXS:165mm, XS:165mm, S:170mm, M:170mm, L:172.5mm
Bottom Bracketcartridge
RimsGiant S-R2 Disc wheelset
HubsGiant S-R2 Disc wheelset
SpokesGiant S-R2 Disc wheelset
TiresGiant S-R3 AC, 700x32c
Extras38mm max tire size
Weight: 10.25 kg (22 lb 11oz) - Size (XS)
